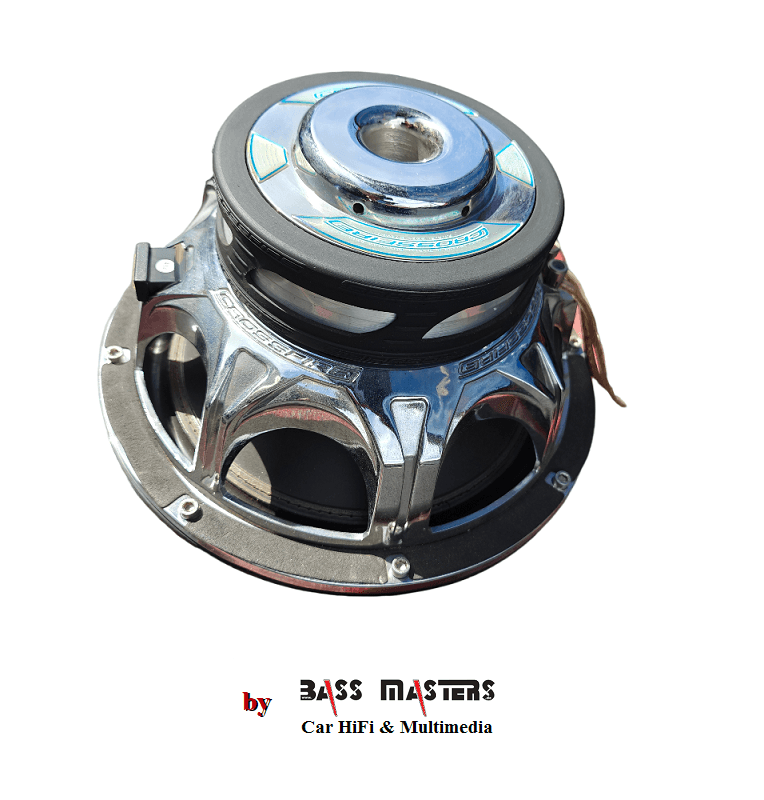

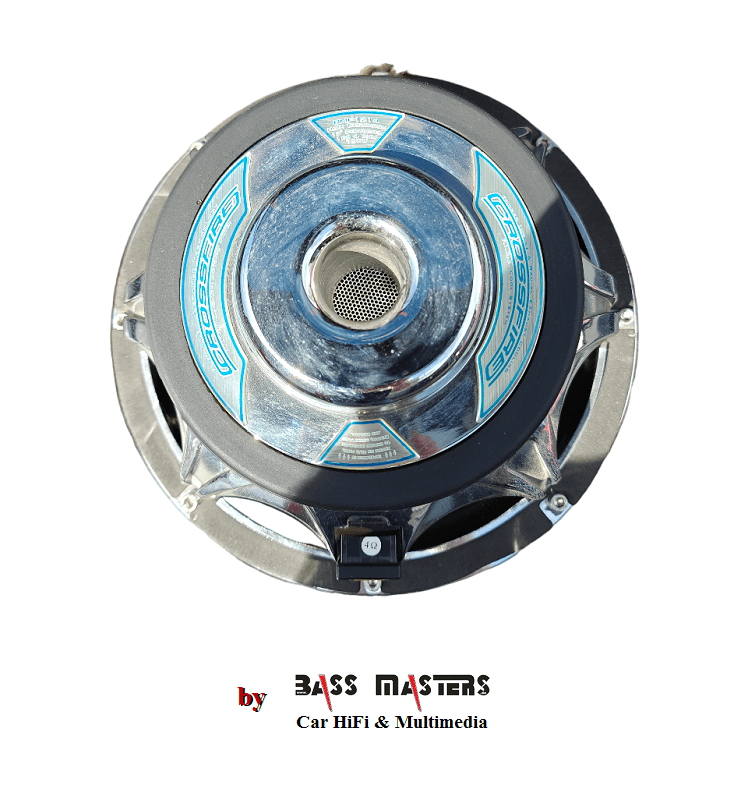

Crossfire BMF 1214

Premium Bass with Crossfire

Sonic Electronix is excited to introduce the BMF Subwoofer Series from Crossfire. Available in 10" 12" and 15" models, these subwoofers feature a co-polymer cone and stitched rubber surround, increasing the rigidity and optimum performance of the subwoofers. Ranging from 400-600 watts RMS, the subwoofers will produce deep,clean hitting bass in any vehicle. The "FIT" dual voice coil impedance selector will allow for instant series or parallel voice-coil configuration when wiring dual voice coils. This will allow quick and easy wiring installation when dealing with either the dual 2 or dual 4 ohm versions. Spring loaded compression input terminals will create a secure and reliable connection each and every single time. Designed to work in either sealed or ported enclosures, perfect for those seeking sound quality or sound pressure level. These high-end, high-quality BMF series subwoofers function like a premium subwoofer at an affordable price.

• 12" Dual 2 Ohm BMF Series Car Subwoofer
• Power Handling:
  • Peak: 1000 watts
  • RMS: 500 watts
• Impedance: 2 Ohms
• Co-polymer cone material
• Stitched rubber surround
• Proprietary chrome aluminum cast frame
• Flexible Impedance Technology (FIT)
• Dual Voice Coil (DVC) impedance selector
• Chromed signature etched back plate
• Chrome plated extended/vented back plate
• Compression nickel-plated sprig loaded input terminals
• Designed for both vented and sealed enclosures
• 2-1/2" 4 Layer Dual 4 Ohm Kapton voice coil
• Dual 85 oz. ceramic stacked magnet structure
• Frequency response: 20-250 Hz
• Sensitivity: 84.6 dB
• Xmax: 14mmm
• Mounting depth: 6-3/8"
• Cutout dimensions: 11-1/8"

Subwoofer Specifications

Recommended Enclosure Specifications
